| Control | |
|---|---|
| Type | Sinumerik 828D |
| System software | SW 28x |
| CNC memory | 8 MB |
| Set change time | 1 ms |
| Look Ahead | 150 |
| Number of tools | 512 |
On Order Only!
Drilling and thread tapping machine with full milling capability and SIEMENS SINUMERIK 828D.
| Control | |
|---|---|
| Type | Sinumerik 828D |
| System software | SW 28x |
| CNC memory | 8 MB |
| Set change time | 1 ms |
| Look Ahead | 150 |
| Number of tools | 512 |

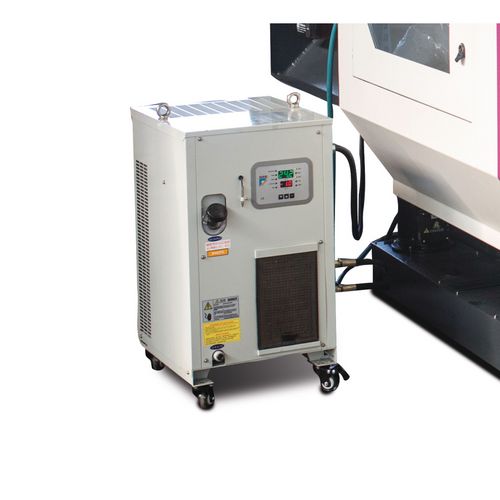

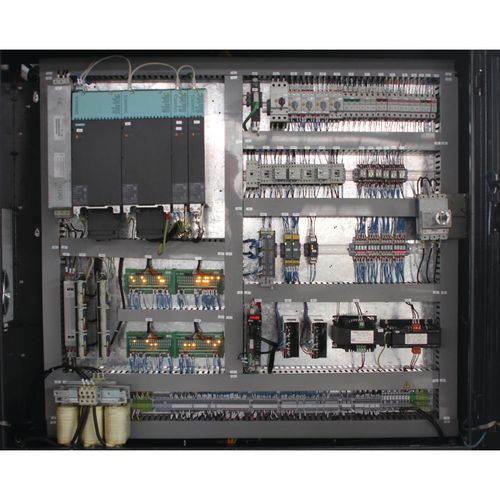

| Cooling lubricant system | |
|---|---|
| Coolant pump(s) drive power | 370 W |
| Tank capacity | 120 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 2315 mm |
| Width/depth approx. | 2194 mm |
| Height approx. | 2325 mm |
| Weight approx. | 3800 kg |
| Drilling/milling output | |
|---|---|
| Max. size milling head | 63 mm |
| Max. size shaft milling cutter | 25 mm |
| Electrical connections | |
|---|---|
| Total rated value | 45 kVA |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Fast motion speed | |
|---|---|
| X axis | 40000 mm/min |
| Y axis | 40000 mm/min |
| Z axis | 40000 mm/min |
| Feed motor drive power | |
|---|---|
| X axis feed continuous operation S1 | 2.32 kW |
| Y axis feed continuous operation S1 | 2.32 kW |
| Z axis feed continuous operation S1 | 3.3 kW |
| X axis 30% operation S6 | 4.1 kW |
| Y axis 30% operation S6 | 4.1 kW |
| Z axis 30% operation S6 | 6.5 kW |
| Feed motor torque | |
|---|---|
| X axis continuous operation S1 | 7.4 Nm |
| Y axis continuous operation S1 | 7.4 Nm |
| Z axis continuous operation S1 | 10.5 Nm |
| X axis 30% operation S6 | 14 Nm |
| Y axis 30% operation S6 | 14 Nm |
| Z axis 30% operation S6 | 21 Nm |
| Feed speed | |
|---|---|
| Acceleration X, Y, Z axis | 2 m/s² |
| Milling table horizontal | |
|---|---|
| Table length | 650 mm |
| Table width | 400 mm |
| Min. clearance vertical spindle – milling table | 150 mm |
| Max. clearance vertical spindle – milling table | 450 mm |
| T-groove size | 14 mm |
| T-groove number | 3 |
| T-groove spacing | 125 mm |
| Max. load bearing capacity | 250 kg |
| Pneumatic connection | |
|---|---|
| Operating pressure | 6 bar |
| Precision | |
|---|---|
| Repetition accuracy | ± 0.006 mm |
| Positioning accuracy | ± 0.005 mm |
| Travel | |
|---|---|
| X axis automatic | 500 mm |
| Y axis automatic | 400 mm |
| Z axis automatic | 300 mm |
| Turret | |
|---|---|
| Design | Servo |
| Number of tool slots | 21 Tools |
| Max. tool diameter | 80 mm |
| Max. tool length | 80 mm |
| Max. tool weight | 3 kg |
| Tool change time chip to chip (C to C) | 7.33 s |
| Vertical spindle | |
|---|---|
| Spindle chuck | BT 30 |
| Speed range | 16000 min¯¹ |
| Explanation speed range | Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation. |
| Spindle centre to Z axis cover | 400 mm |
| Drive motor output continuous operation S1 | 12 kW |
| Drive motor output S6-30 % operation | 22.8 kW |
| Torque drive motor continuous operation S1 | 38 Nm |
| Torque drive motor S6-30 % operation | 116 Nm |
| VPE | 1 |
